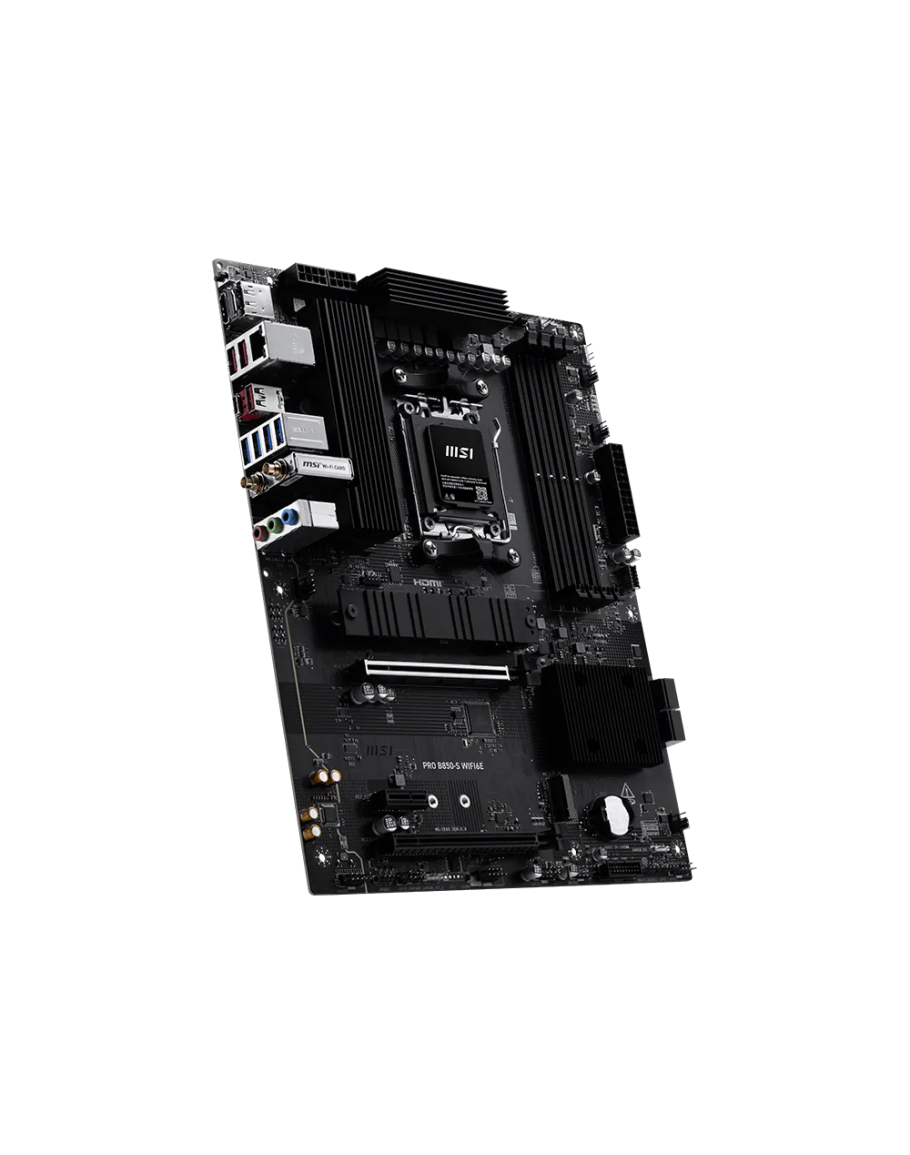

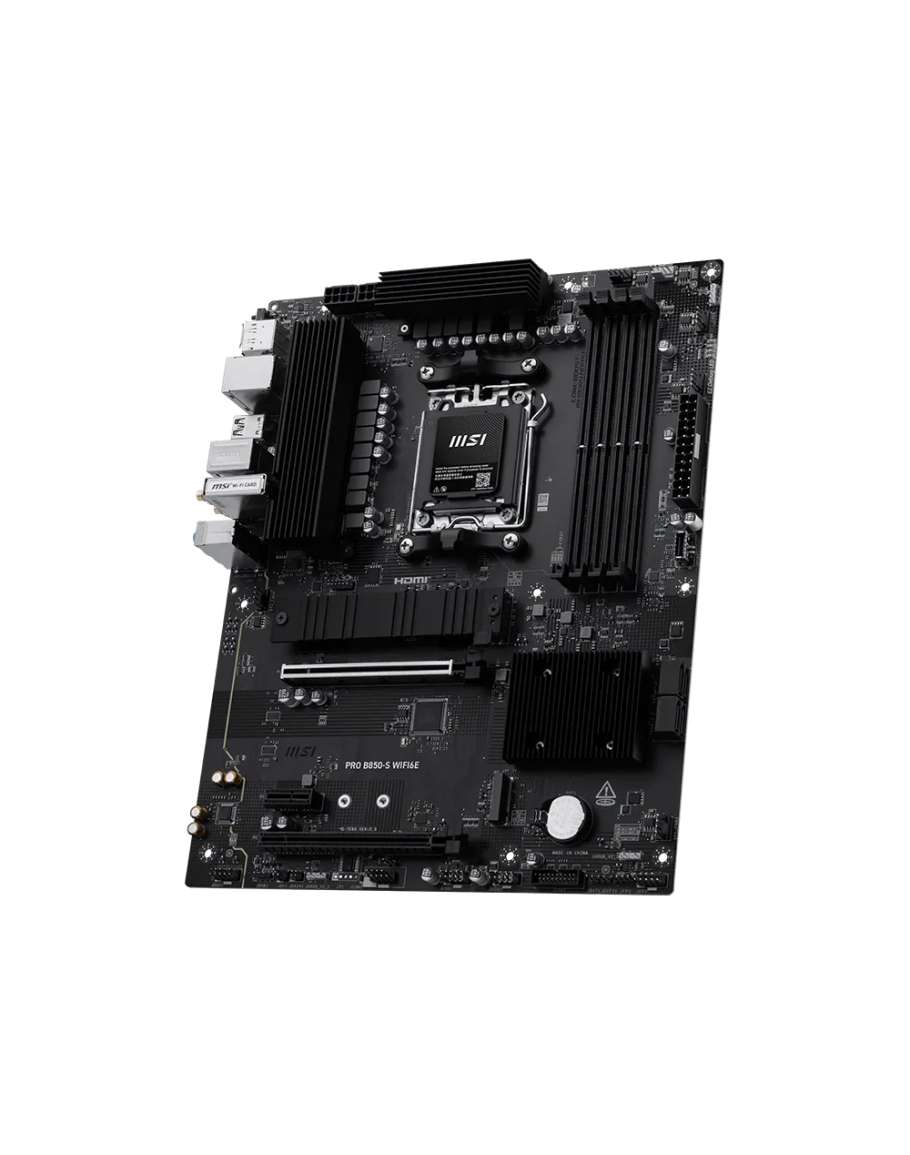

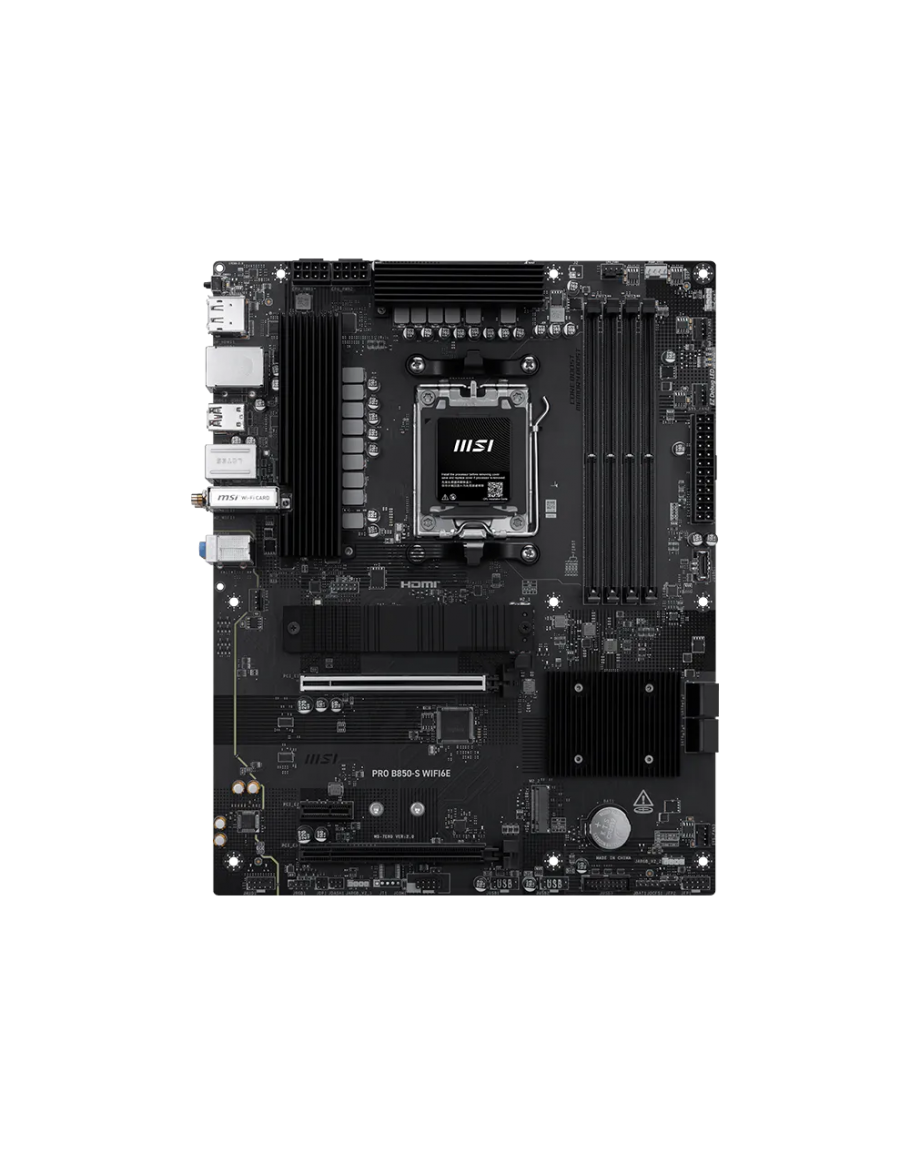

MSI PRO B850-S WIFI6E
- €154.68
| Vendor_url | https://www.msi.com/Motherboard/PRO-B850-S-WIFI6E | |
| Manufacturer | MSI | |
| Socket | Socket AM5 | |
| Graphics | 1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz | |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors | |
| Chipset | AMD B850 | |
| Expansion slots | 2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E1 slot; • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) | |
| Storage | 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); M2_2 slot; • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors); • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors); *Please refer to the manual for M.2 SSD heatsink restrictions. | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only | |

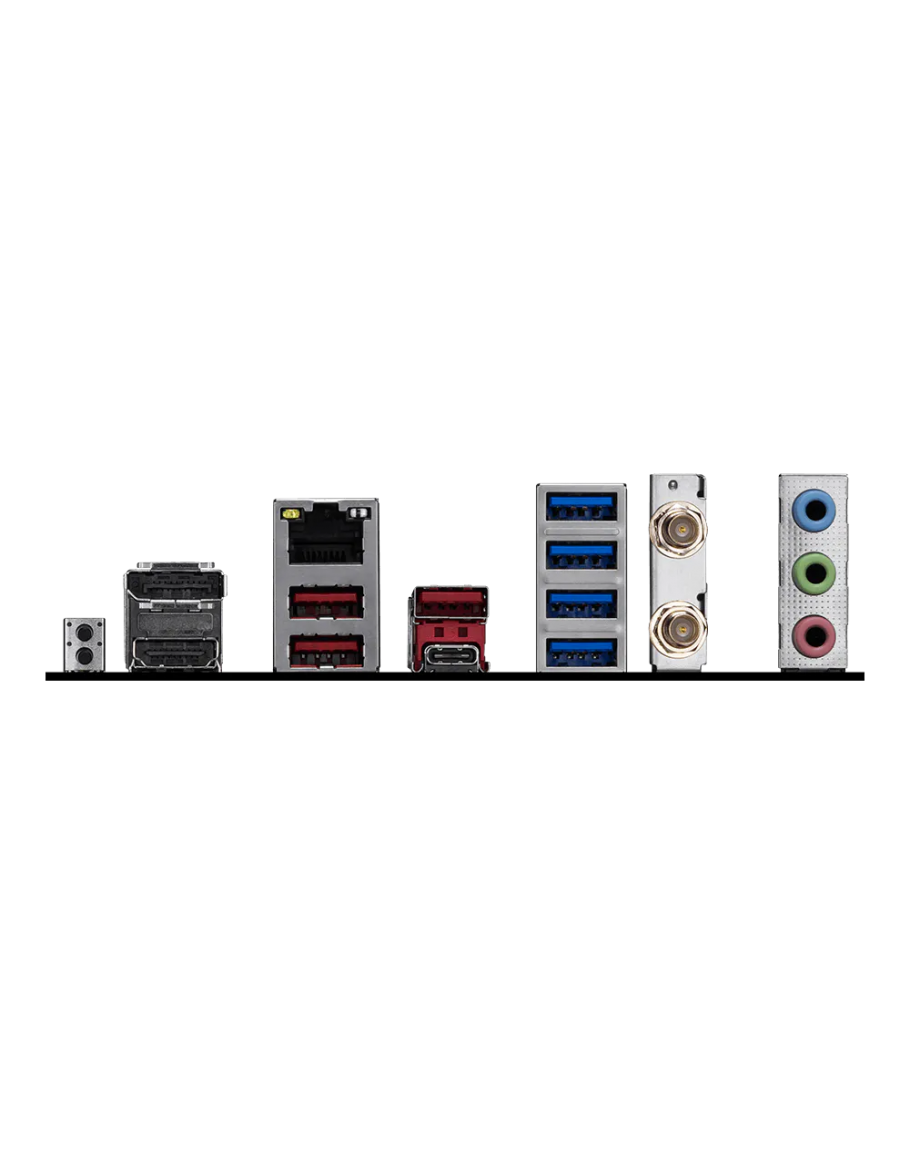

| Rear panel I/O | Clear CMOS Button; DisplayPort; 2.5G LAN; USB 10Gbps Type-A; USB 5Gbps Type-A; Wi-Fi / Bluetooth; Audio Connectors; Flash BIOS Button; HDMI™; USB 10Gbps Type-A; USB 10Gbps Type-C | |
| USB | 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front) | |
| Connectors | 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports | |
| Audio | Realtek® ALC897; 7.1-Channel High Definition Audio | |
| Lan | Realtek® 8125 2.5G LAN | |
| Wireless | Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3**, FIPS, FISMA; * 6GHz band support may depend on every country’s regulations and Wi-Fi 6E requires Windows 11.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. | |
| Bluetooth | Supports Bluetooth® 5.3**, FIPS, FISMA | |
| OS | Support for Windows® 11 64-bit | |
| Other | 4x EZ Debug LED; 1x EZ Memory Detection LED | |
| Dimensions | ATX 243.84mmx304.8mm |
