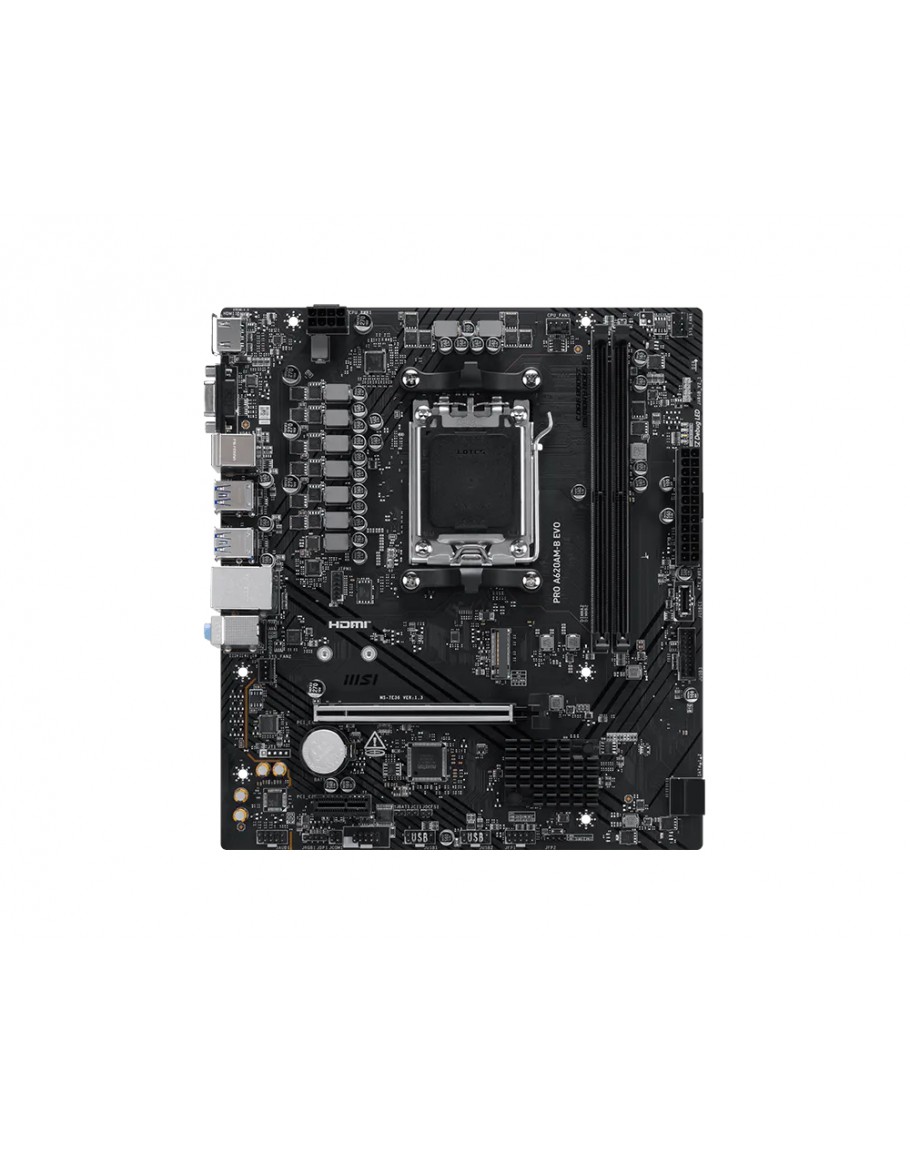

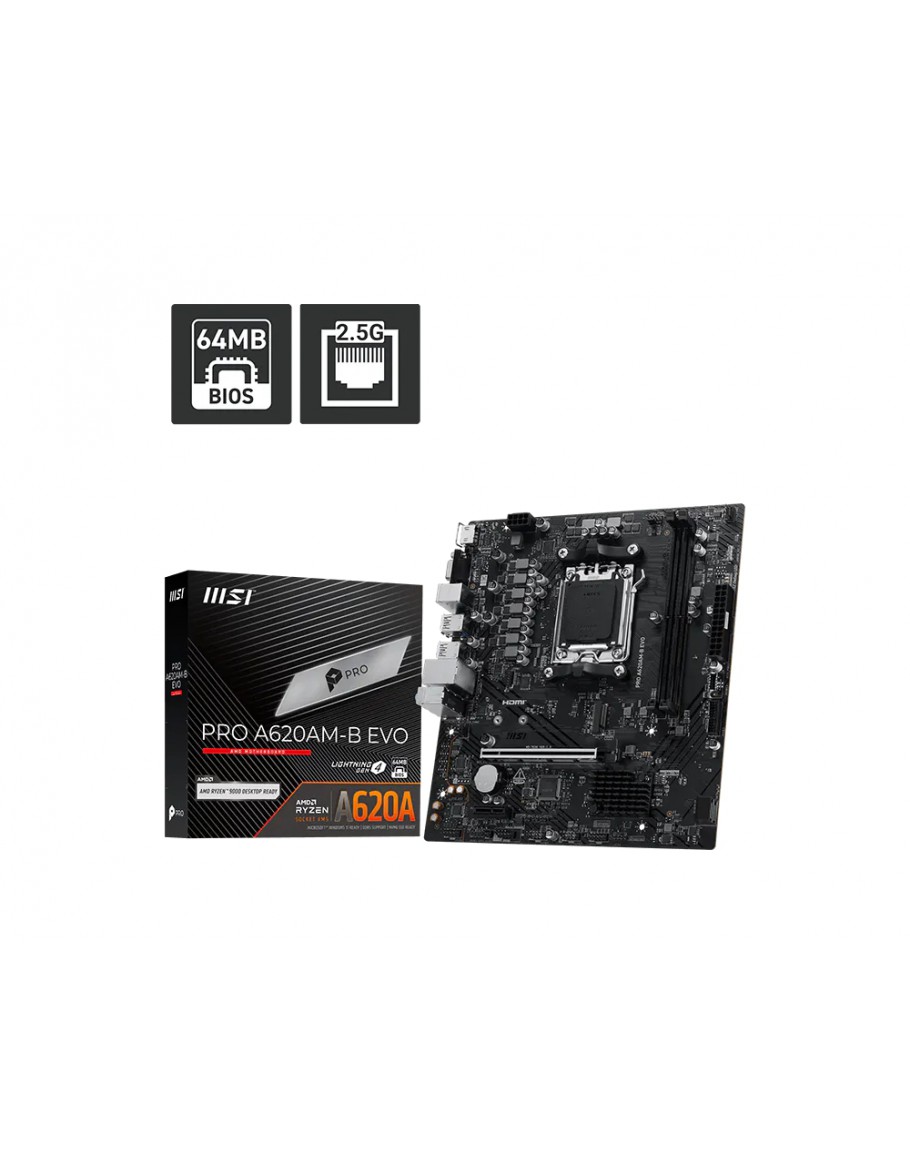

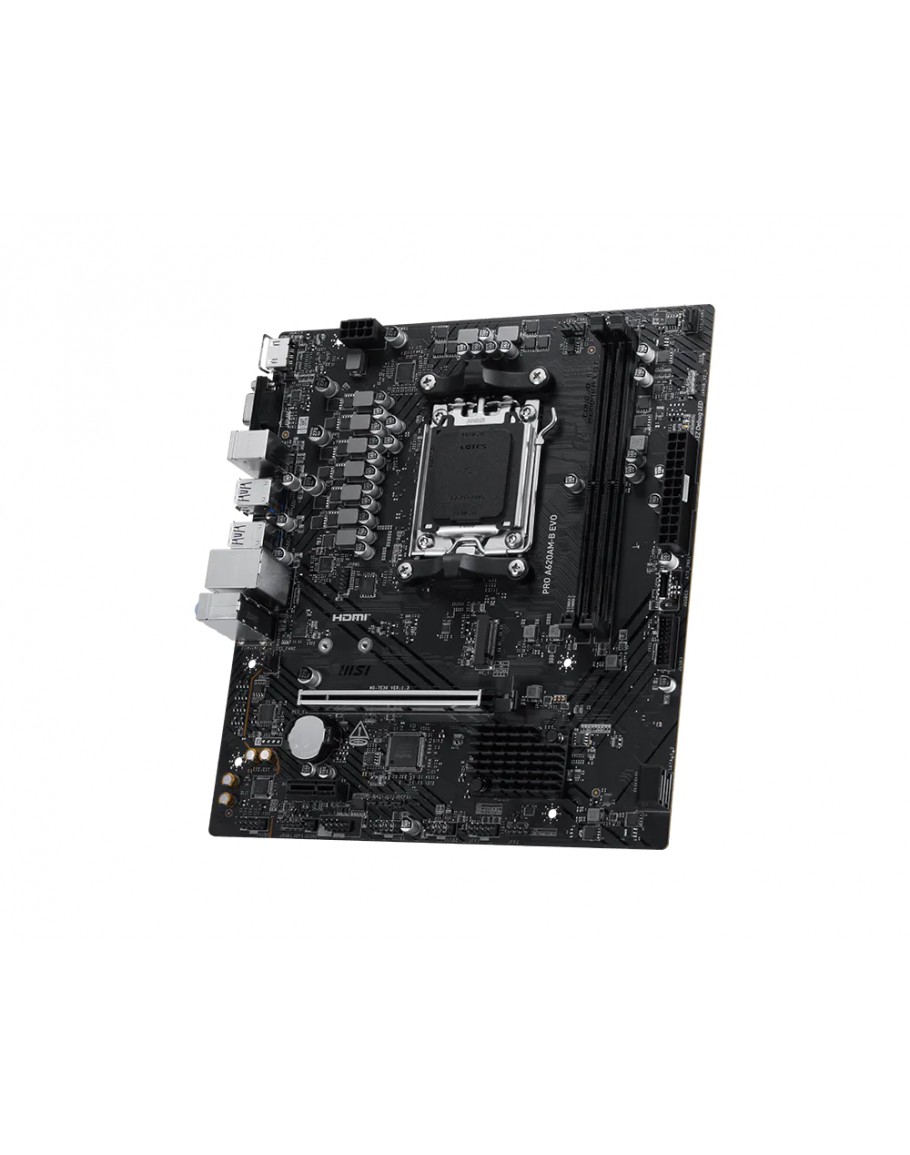

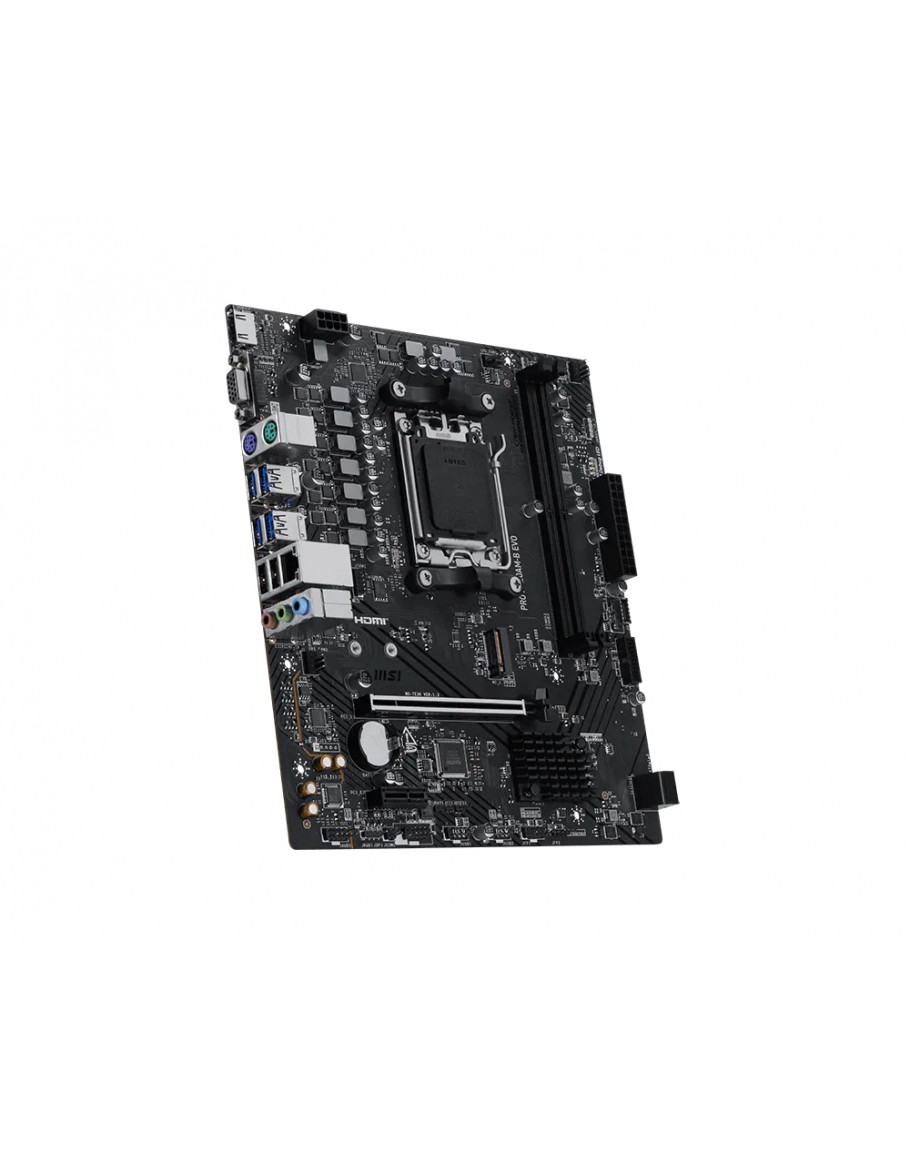

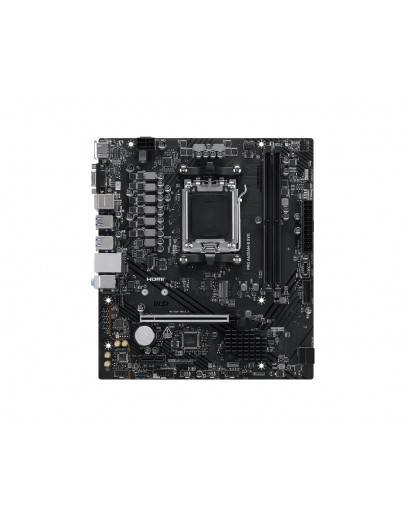

MSI PRO A620AM-B EVO
- €82.06
| Vendor_url | https://www.msi.com/Motherboard/PRO-A620AM-B-EVO/Specification | |
| Manufacturer | MSI | |
| Model | PRO A620AM-B EVO | |
| Socket | Socket AM5 | |
| Graphics | 1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz | |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors | |
| Chipset | AMD A620A | |
| Expansion slots | 1x PCI-E x16 slot; • Supports x16 (For Ryzen™ 9000 and 7000 Series processors); • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports x4 (For Ryzen™ 8500/ 8300 Series processors); 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Storage | 1x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 2x SATA 6G; M2_1 slot; • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors); • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) | |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices | |
| Memory type | 2x DDR5, Maximum Memory Capacity 128GB; Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6800+ MT/s; • 1DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only | |

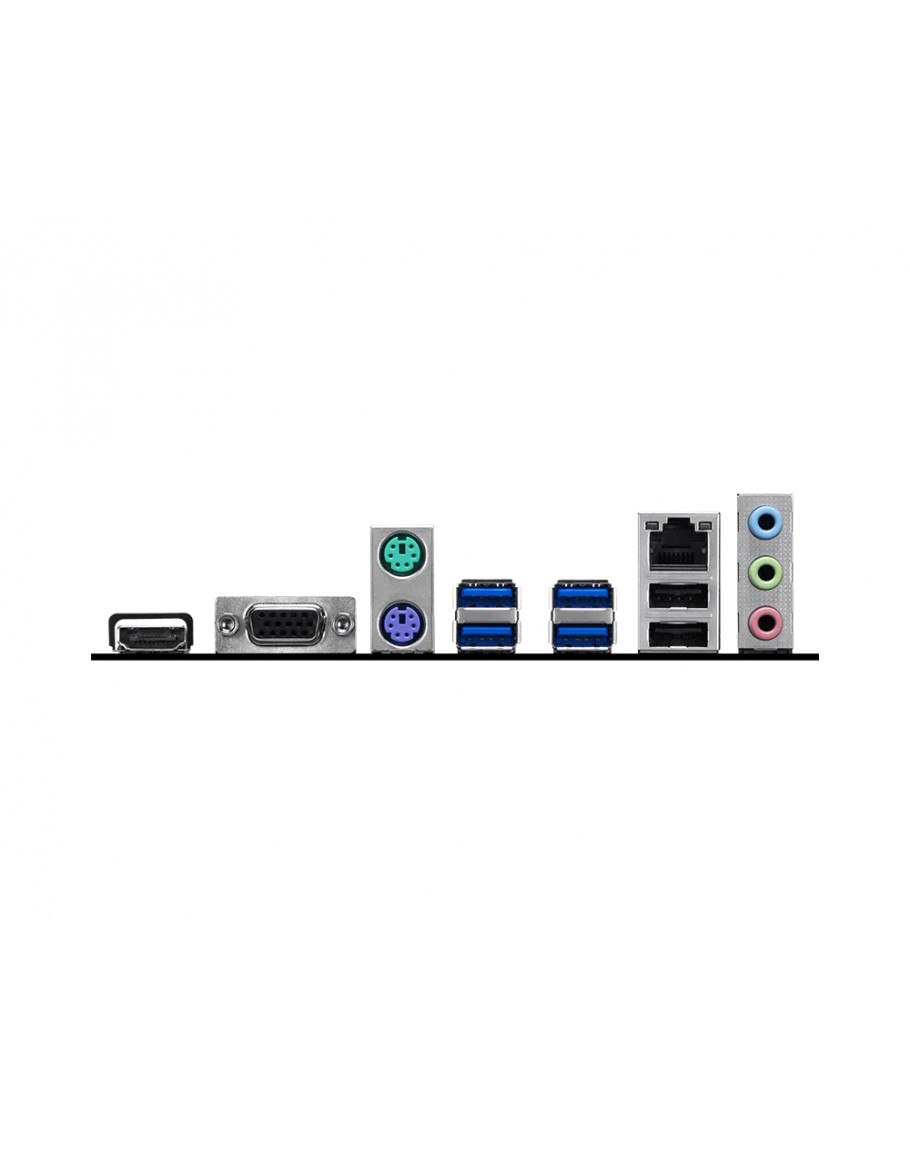

| Rear panel I/O | HDMI™; VGA; Keyboard/Mouse; USB 5Gbps Type-A; LAN port; Audio connectors; USB 2.0 | |
| USB | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front) | |
| Connectors | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports | |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio | |
| Lan | Realtek® RTL8125 2.5G LAN | |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit | |
| Other | 4x EZ Debug LED; 1x EZ Memory Detection LED | |
| Dimensions | mATX 218mmx243.84mm |
